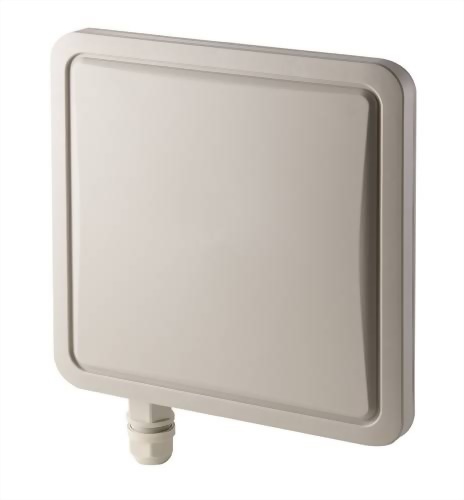

5GHz MIMO 雙頻 無線網路基地台
5G-18dbi Panel 300Mbps Wireless Solution
型號 :
AAP-5159P18M
|
Standards Compliance
|
IEEE 802.11a/n ; IEEE802.3 ; IEEE802.3u ; IEEE802.3x
|
|
Chipsets Solution
|
Atheros AR7240 Atheros AR9280 (5GHz Backhaul)
|
|
Radio Frequency Type
|
OFDM
|
|
Modulation
|
OFDM with BPSK , QPSK , 16QAM , 64QAM
|
|
SDRAM
|
32 M Byte
|
|
Flash
|
8 M Byte
|
|
Frequency Band
|
5.15~5.35 GHz / 5.47~5.725 GHz / 5.725~5.825 GHz
|
|
Sensitivity
|
-92dBm @ 11Mbps / -73dBm @ 54Mbps / -73/-69dBm @ HT20/HT40 MCS15
|
|
Antenna Type
|
18 dbi Panel
|
|
Access Point Interfaces
|
Auto sensing MDI/MDI-X Ethernet 10/100 Base-TX：2 x RJ45 (option)
|
|
Operation Mode
|
AP、WDS、Client Bridge + Repeater AP mode
|
|
Operating Environment
|
Operating Temperature：-30 ~ +70°C；Operating Humidity：10~90%
|
|
Power
|
POE 12 Volt +/- 5 % / 1.0 A (Max.) AC adapter AC 100V ~ 240V
|
|
Dimensions
|
228 * 228 * 75 mm
|
|
Material
|
Plastic
|
|
Warranty
|
One year limited
|
