2.4GHz/5GHz MIMO 雙頻 無線網路基地台
2.4/5G 300Mbps Mini PCi Wireless Solution

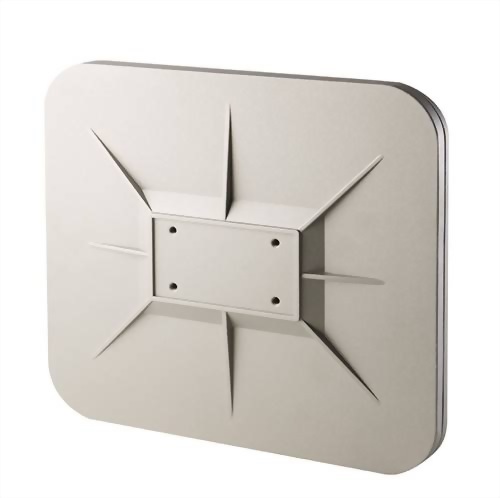

型號 :
AAP-2458G
|
Processor
|
Atheros AR7161 680MHz (MIPS architecture)
|
|
System Memory
|
16MB SPI flash, 64MB DDR SDRAM
|
|
Radio interface
|
Mini‐PCI socket x 2
|
|
Power Type
|
9V~24V ‐‐‐DC Jack or 2pins header
|
|
LED
|
LED1 power ; LED2 GPIO define ; LED3 GPIO define ; LED4 GPIO define
|
|
USB interface (option)
|
USB (Type A)
|
|
Ethernet
|
AR8035(10/100/1000) x 2 ‐‐‐‐‐‐‐‐RJ45 std. header or 8pins header
|
|
GPS (option)
|
Support Position tracking and 1PPS Active antenna is required
|
|
External I/O
|
7 GPIOs configurable
|
|
Debug interface
|
JTAG (pin header) and 4pins UART or DB9 RS232 (option)
|
|
RF Bandwidth
|
2.5M to 52M per 0.5M
|
|
GPS Map
|
S/W support
|
|
Size
|
269 x 239 x 68 mm
|
|
Watch Dog
|
H/W support
|
|
Material
|
Aluminum
|
|
Warranty
|
One year limited
|
