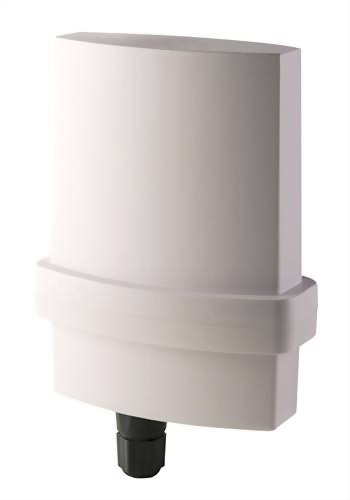

2.4GHz MIMO 無線網路基地台

2.4G-12dbi Panel 300Mbps Wireless Solution
型號 : AAP-242506P12M

Standards Compliance
IEEE 802.11b/g/n / IEEE 802.3 / IEEE 802.3u
Chipsets Solution
AR9341
SDRAM
32 M Byte
Flash
8 M Byte
Radio Frequency Type
DSSS / OFDM
Modulation
IEEE802.11b: CCK, DQPSK, DBPSK / IEEE802.11b/g/n: OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency Band
America/FCC: 2.412~2.462 GHz (11 channels) Europe CE/ETSI: 2.412~2.472 GHz (13 channels)
Radio
2x2 2.4Ghz
Transmission Power
IEEE 802.11b/g/n: up to 26dBm average power, per channel
Transmission Rate
IEEE 802.11b: 1/ 2/ 5.5/ 11 Mbps / IEEE 802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
IEEE 802.11n (2x2 HT20): 13.5/27/40.5/54/81/108/121.5/135 @ GI=800ns15/30/45/60/90/120/135/150 @ GI=400ns
IEEE 802.11n (2x2 HT40): 27/54/81/108/162/216/243/270 @ GI=800ns30/60/90/120/180/240/270/300 @ GI=400ns
Access Point Interfaces
Auto MDI/MMDI-X Ethernet 10/100Base-TX: RJ-45
Sensitivity
-93@1Mbps; -84dBm @ 11Mbps; -75dBm @ 54Mbps;-68dBm@HT-20, MCS-15; -64dBm@HT40, MCS-15
connector
MMCX connector
Hardware reset
reset button
Security Systems
64-bit/128-bit/152-bit WEP encryption; Wi-Fi Protected Access (WPA) and WPA2
Wireless Setting
Operation Mode – AP / Wireless Client / Repeater / Wireless Bridge (WDS)
Operating Environment
Operating  Temperature: -20 ~ +60°C
Power
802.3at PD complied, 48 Volts by external PoE Injector
Size
161 x 142 x 82 mm
